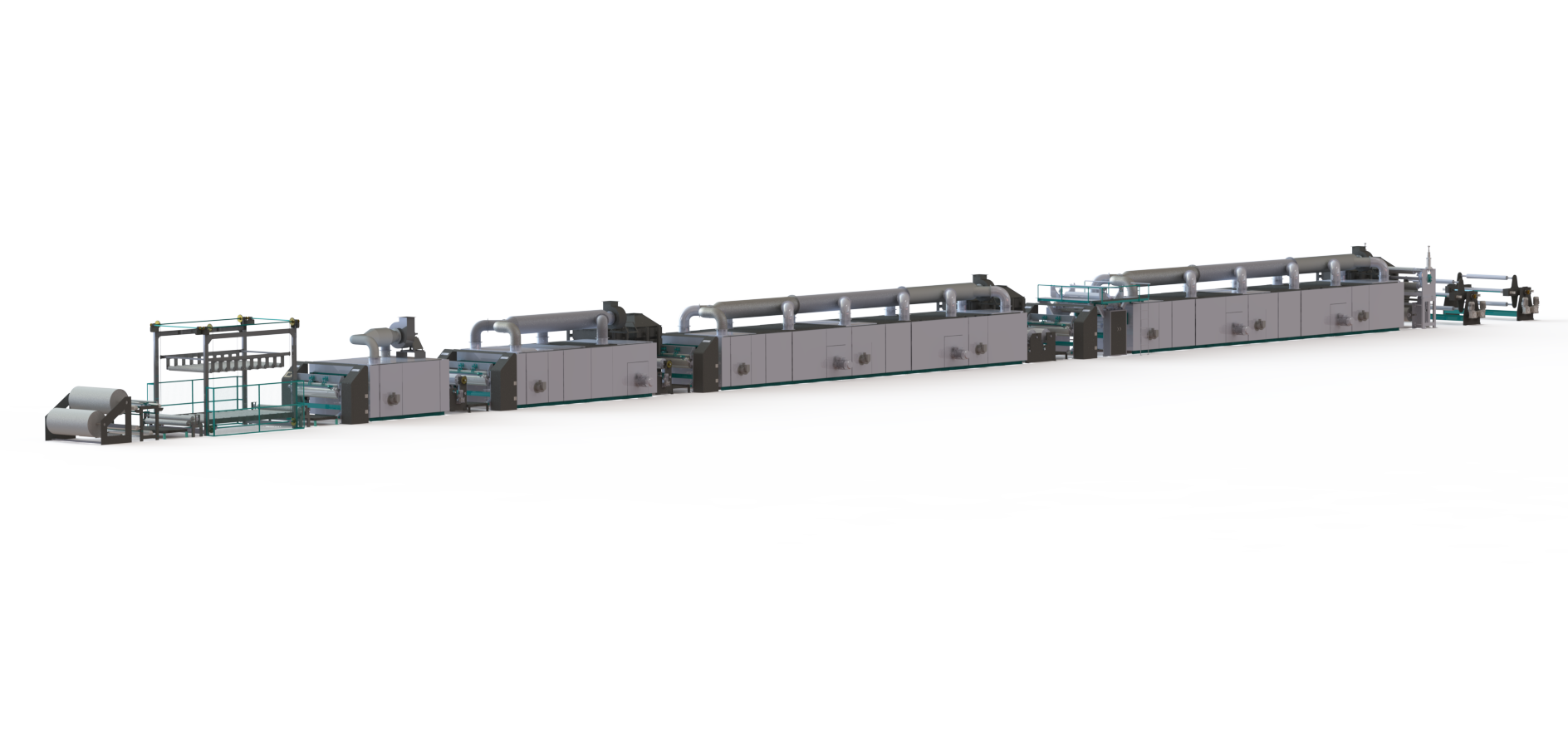

- PVC/PU COATING PLANT
- DOUBLE BATCH OFF
- PLATFORM
- PAPER JOINTING
- ACCUMULATOR
- COATING HEAD
- COOLING UNIT
- LAMINATOR
- EMBOSSING UNIT
- CUTTER
- CHAMBER
- BATCH ON : PRODUCT AND PAPER
- MIXER and GRINDER
- TRIPLE ROLL GRINDING MACHINE
- PAPER INSPECTION
- PRODUCT INSPECTION MACHINE
- LIQUID DISPENSING SYSTEM
- TURRET EMBOSSING UNIT
- TURRENT PAPER WINDER
- EDGE TRIMMER
- TURRET WINDER PRODUCT
- 14 " COOLING DRUM
- DOUBLE COOLING DRUM
- FOUR COOLING DRUM
- Reviews (0)

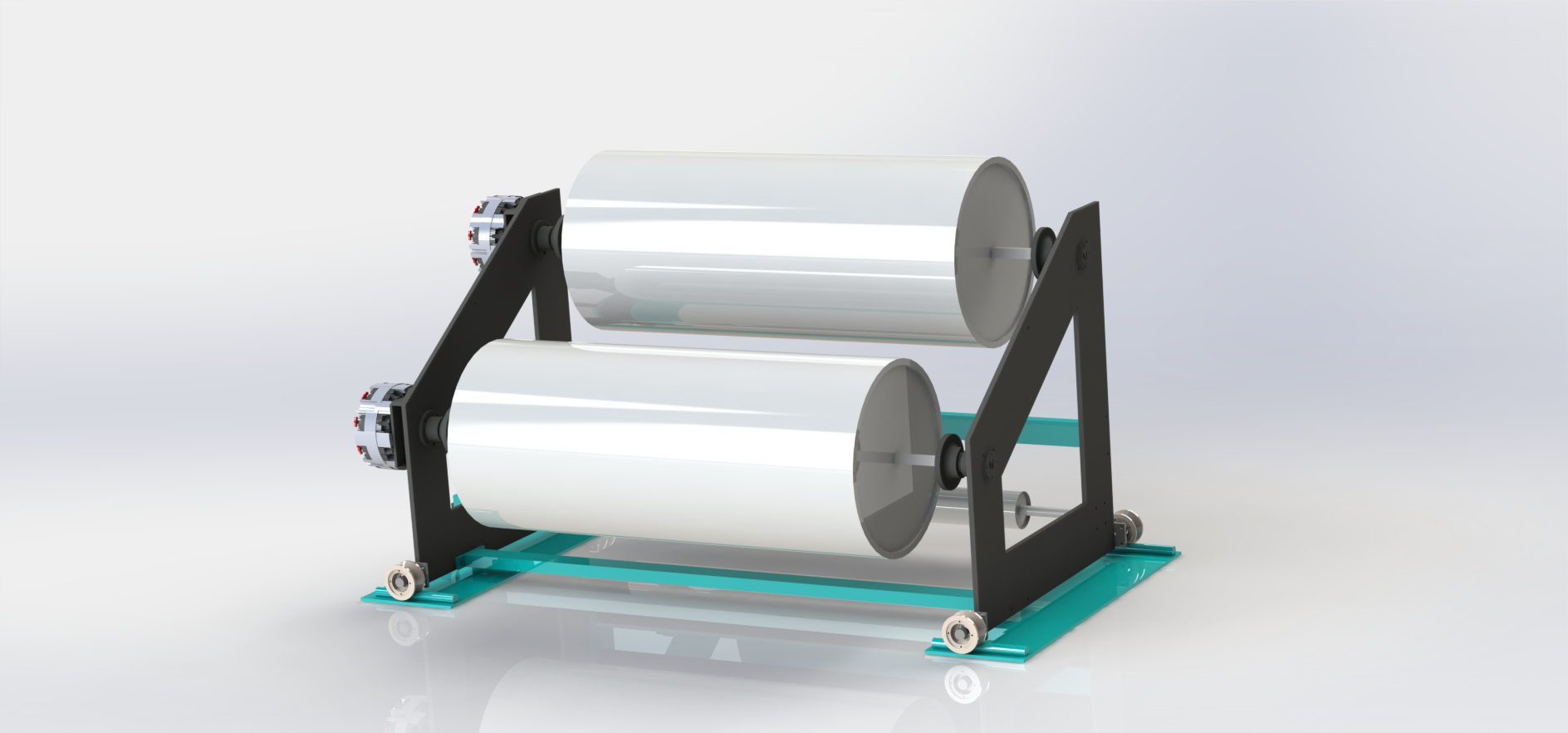

DOUBLE BATCH OFF
PLATFORM
PAPER JOINTING
- This Machine is used to join paper with rest of the Plant while it is running
- Ensures Angular cutting of paper
ACCUMULATOR
- The Accumulator machine permits continuous production while the batch is being changed.
- This machine has a capacity of up 80 meters of fabric
- This machine is designed to accommodate engraved rollers in the range of 150 to 225 mm diameter.
- This machine has a gap setting arrangement to ensure embossing of the fabric in an expanded form.

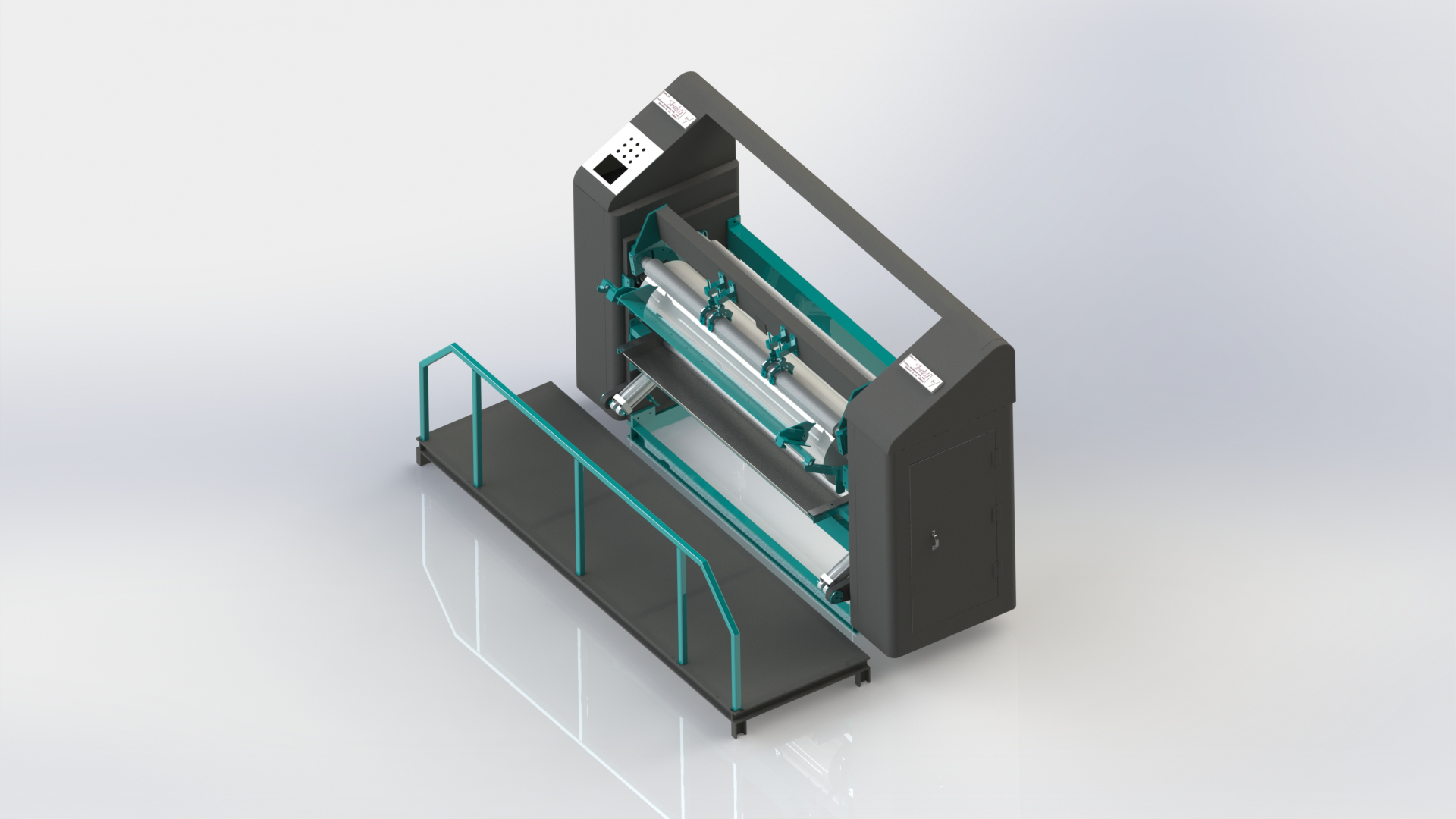

COATING HEAD
- It is a knife over roller system.
- The Coating head is designed to coat P.V.C paste/ Pu solution paper on fabric in various coating weights suitable for coating of fabrics in a wide range of coating weights with consistency.
- The coating head has “Micro- Gap Adjustment” feature which permits a uniform coating.
- It has quick pneumatic lifting for joins in the fabric
- The coating head has lateral side-checks that ensure the paste is limited within the desires width of the fabric.
- The Coating Head has a Comer Knife which is CAM operated for precision and Micro settings
- The machine is fit with a Compensator which absorbs variations in tensions on the line which avoids tears and tensions on the paper line.
COOLING UNIT
- This Machine is two different configurations that is Open or Jacketed constructions.

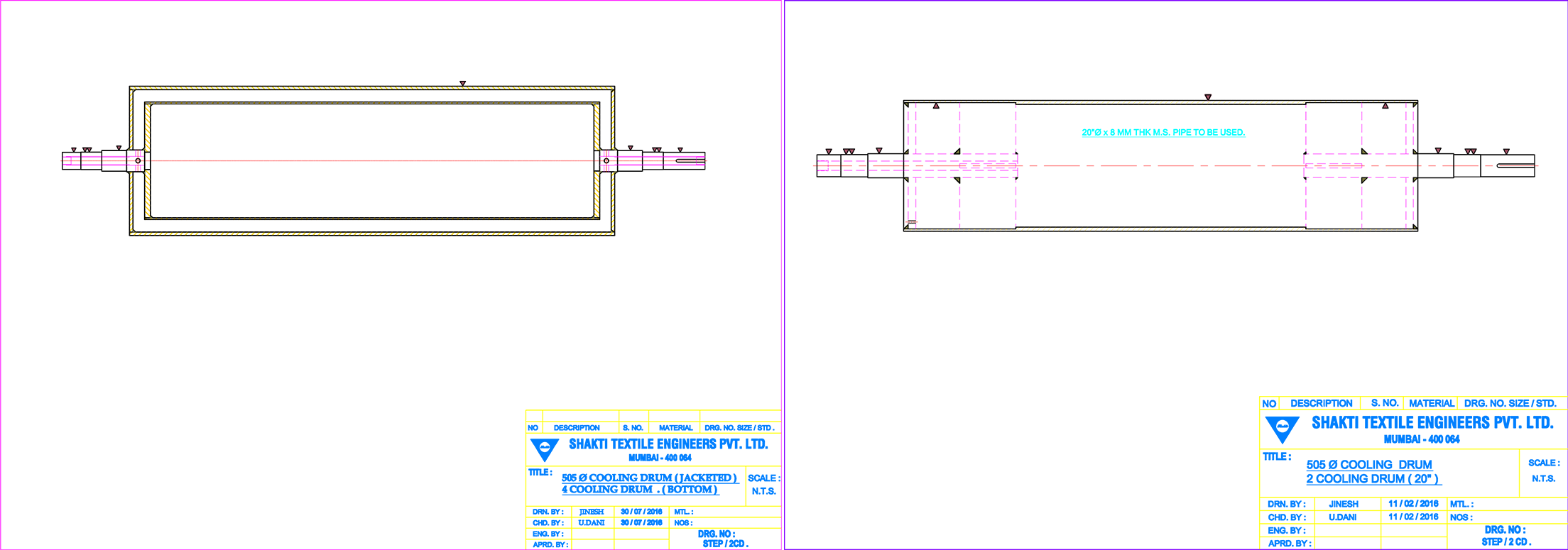

The Cooling Drums are offered in Stainless Steel as well as Hardened Chromed Steel constructions
LAMINATOR
- LaminatorThe Laminating machine is designed to feed the larger machine with fabrics with different and irregular dimensions such as Knitted, Woven, Non- Woven, Cotton and Synthetic Fabrics.
EMBOSSING UNIT
- This machine is designed to accommodate engraved rollers in the range of 150 to 225 mm diameter.
- This machine has a gap setting arrangement to ensure embossing of the fabric in an expanded form.
CUTTER
- The Pneumatic Cutter is used to edge trim the product according to the required width
CHAMBER

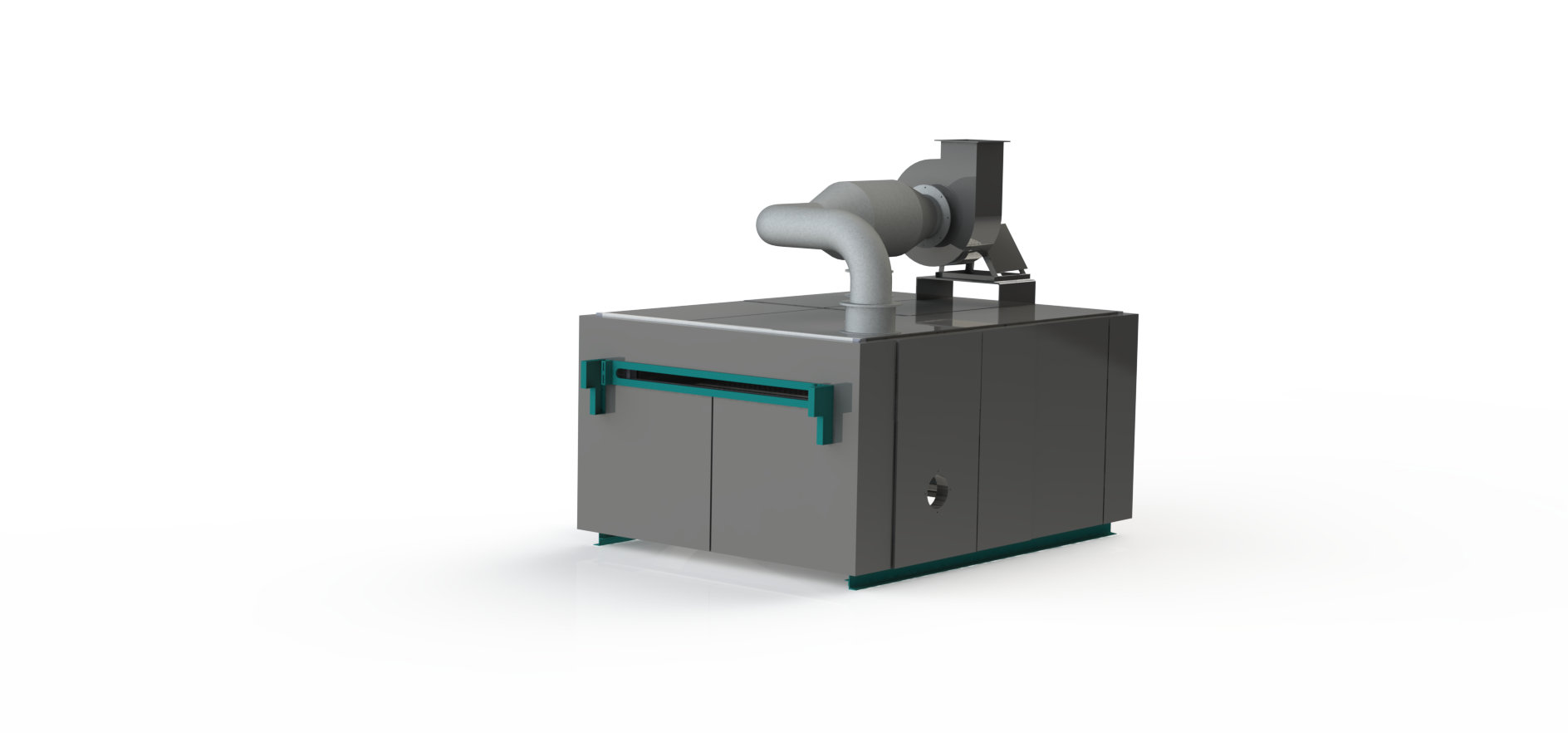

10 feet chamber :

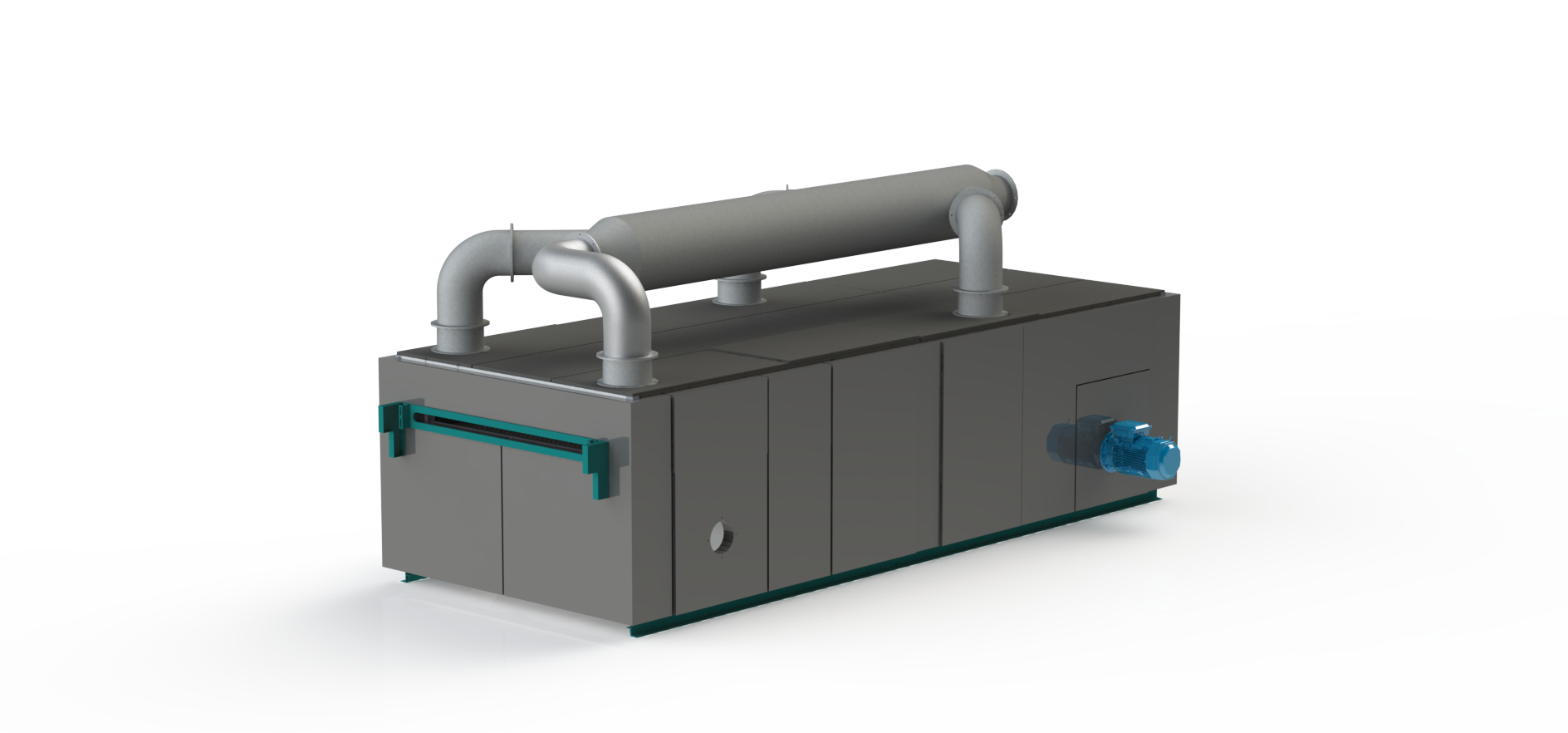

20 feet chamber :

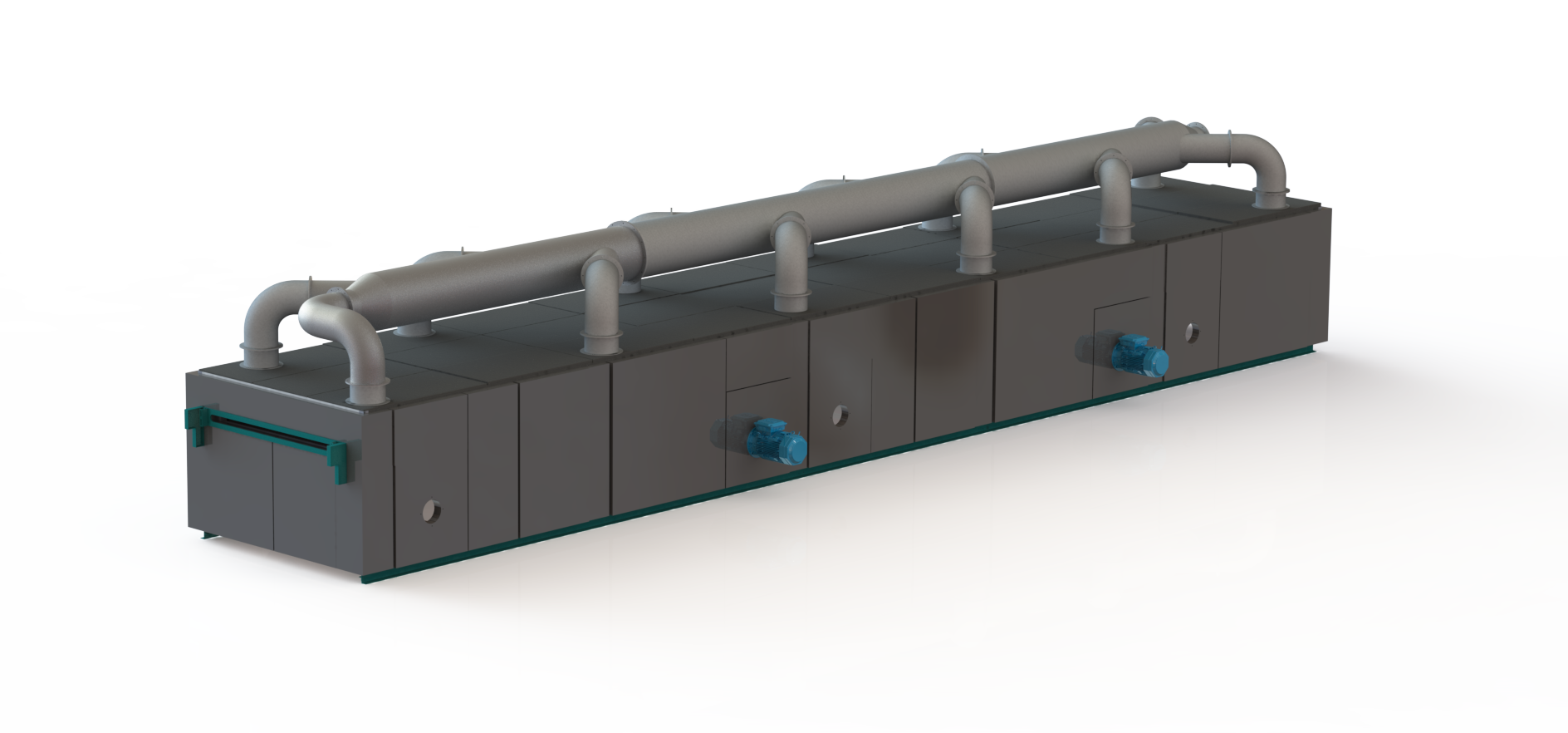

50 feet chamber :
This are expandable chamber 10ft to 60ft , also available in Arch Type .
- This is an Arch Type Chamber.
- Bush Bearing are fitted for Paper guiding.
- The Chambers have Uniform Air Velocity for Uniform Foaming.
- Fitted with Invertor control for both Exhaust and Blowers.
- The Chamber maintains Uniform Temperature Gradient across the entire width.
- The Chambers are 4 ‘’ Inches thick and are Insulated with 100 Density Mineral wool to prevent loss of temperature to improve efficiency.
BATCH ON : PRODUCT AND PAPER
Paper Batch off
- This machine is designed for unwinding of the release paper and it maintains and controlled the tension across the length of the machine
- The machine has positive driven loop roller system that ensures uniform feeding of the paper.
- It is designed to have a batch of up to 700 mm

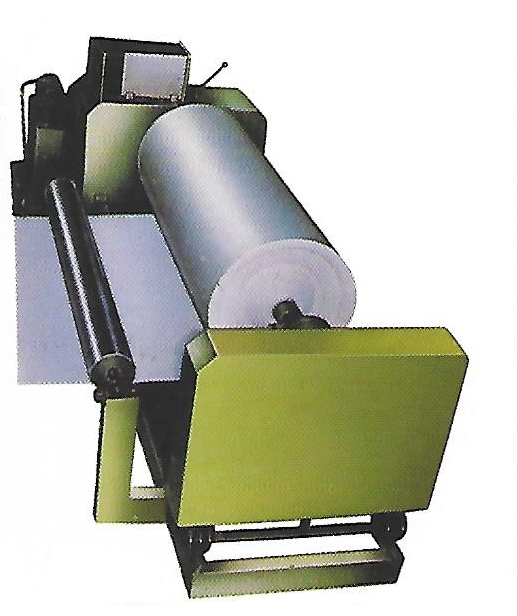

Paper Batch on
- This machine comes equipped with a Hydro-pneumatic system for edge -to- edge winding of the release paper.
- Designed to have a single batch of up to 700 mm
- The machine is equipped with Torque Controlled Drives which permits the winding process under a specific and constant speed and tension.
Double Product Batch on
- This machine is designed to ensure easy and wrinkle free winding of the finished product
- The machine is equipped with Torque Controlled Drives which permits the winding process under a specific and constant speed and tension.
- The Double Product Winder permits the change of batch while line is still running.
- This machine is designed to have a batch of up to 1000 mm.
MIXER and GRINDER
Planetary Mixture
- This is a versatile Kneader- Mixer which can be used for Stirring, Mixing and Kneading Viscous liquids or pastes into a homogeneous consistency.
- This machine ensures Evacuation of air pockets, Homogenizing and Dispensing agglomerates in the mixture.
- The Kneader Mixer is an excellent machine for preparing Paints, Lacquer, Printing Inks and Plastic compounds.
TRIPLE ROLL GRINDING MACHINE
- This is an all-purpose, Heavy Duty Triple Roller Mill which has an exceptional performance in processing highly viscous Paste based products (Paste and Paint) in Medium and Small batches.
PAPER INSPECTION
- This machine is designed to ensure inspection of paper on a horizontally laid out table which allows easy cleaning and joining of the fabric.
- This machine come equipped with a Hydro Pneumatic System which permits edge to edge winding of paper after its inspection.
PRODUCT INSPECTION MACHINE
- This machine is designed to be suitable for 1000 mm batches.
- The inclined design of the table ensures easy inspection of the finished Leather Cloth.
- The machine is equipped with a Counter meter for accurate measurements.
- This machine also come equipped with a variable speed surface winder with a D.C drive.

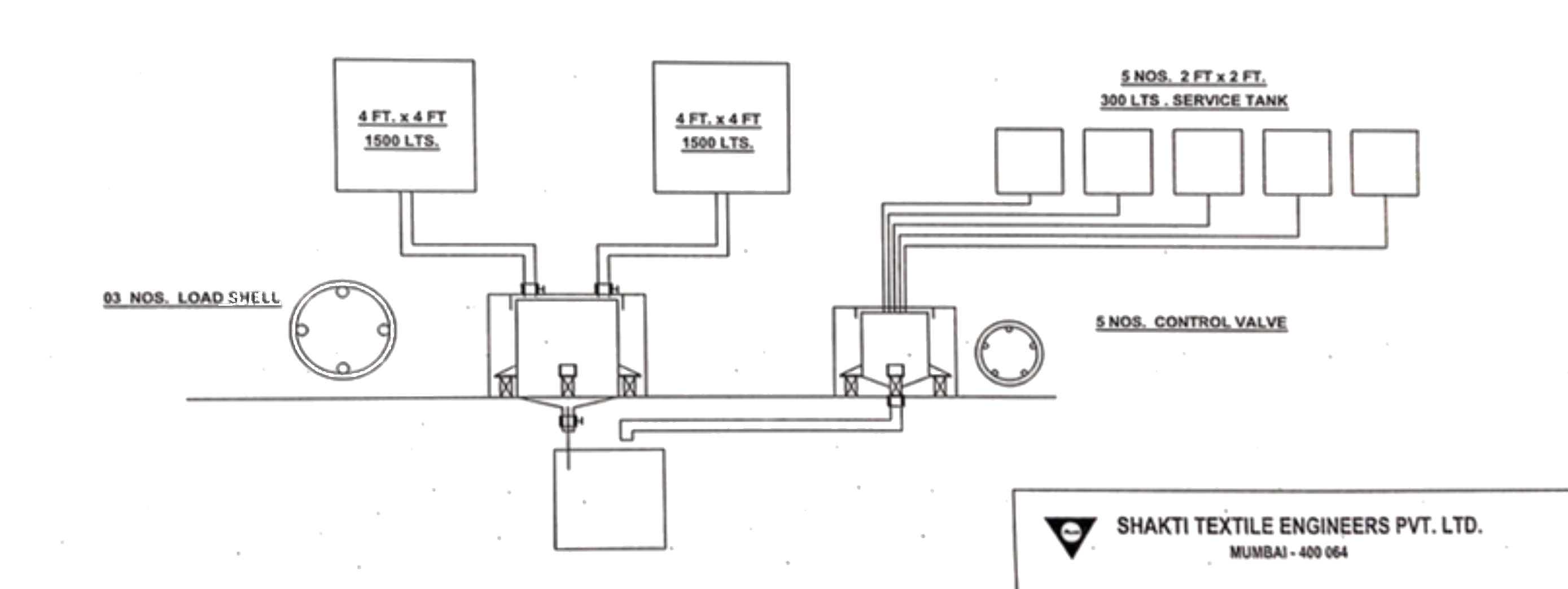

LIQUID DISPENSING SYSTEM
Parts of the liquid dispensing system
- Storage tanks
- Pipe Line – inlet, outlet, Manual Override pipeline, pump.
- Control valves, manual valve, quick release flexible pipes
- Precision weighing funnel with germany make load cells(2 sets)
- Display cum PLC HMI based Dispensing menu based software panel.
Features
- Two funnel dispenser’s. One for more than 500Kgs.and second funnel for less than 500Kgs.
- Software to dispense sequentially the exact quantity of liquid per meter (100-150…2000 meters)
- Menu based liquid dispensing help reduce down time of the production line, as approximation is avoided.
- Records consumption, can be printed per batch, per day, per month and per year.
- Structured mixing department.
Advantages
- Reduced management reporting.
- Consistent liquid mix.
- Reduced wastage.
- Reduced manual interference.
- Clean mixing of material.
- Reduce dependence on the mixing department.
- Precise costing.
- Better inventory management
- Re-ordering support
- Reduce cost overrun due to approximation
- Multiple weighing systems made redundant.
- Worker friendly(Multiple criss-cross movement avoided)
- Reduced labor fatigue.
- Manual records not required.
TURRET EMBOSSING UNIT
TURRENT PAPER WINDER
EDGE TRIMMER
TURRET WINDER PRODUCT
14 " COOLING DRUM

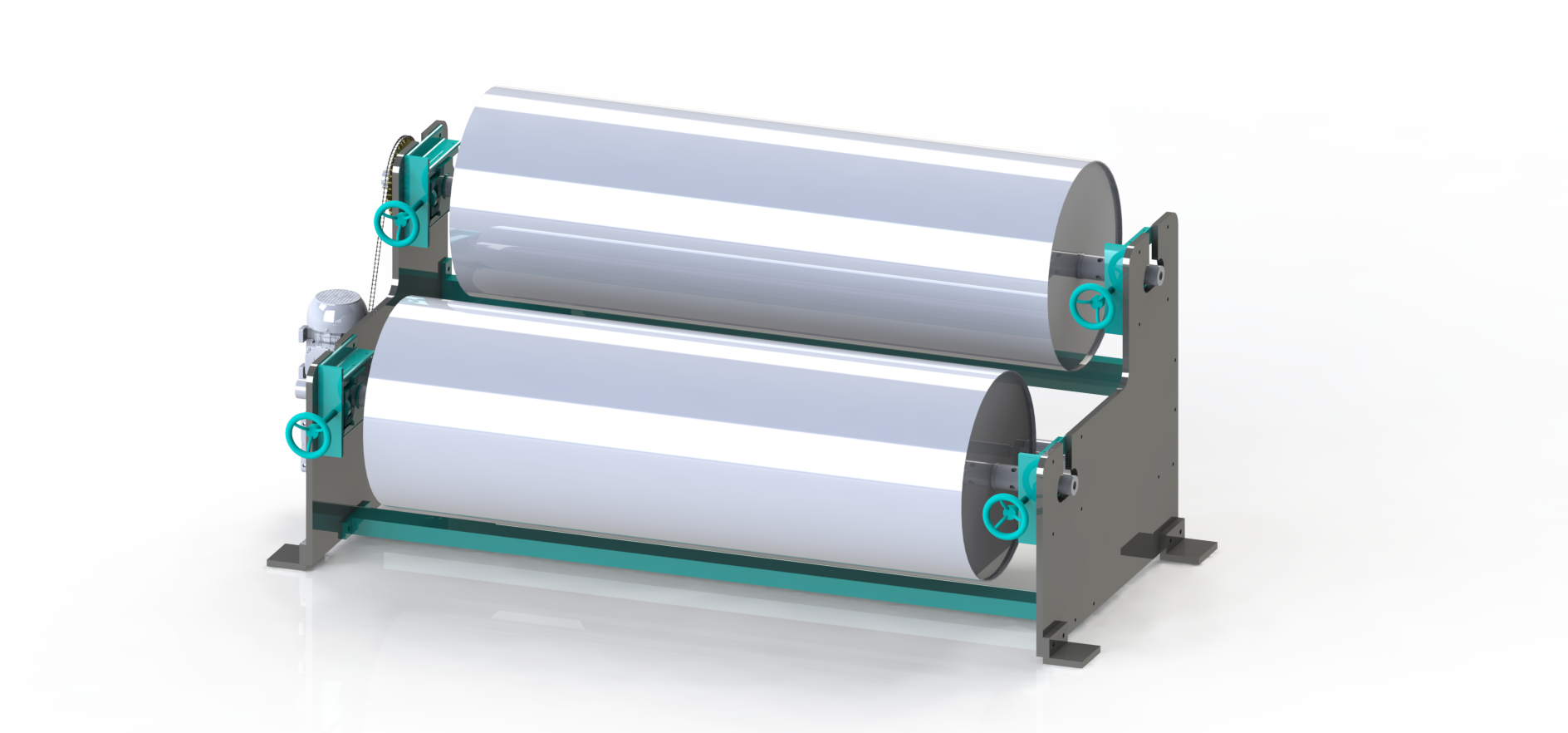

DOUBLE COOLING DRUM
FOUR COOLING DRUM
