MANGLE
Special Features :
1) 2 Bowl and 3 Bowl Mangle.
2) Vertical and Inclined Mangle.
3) Roll Diameter 9”, 10”, 12”, 14”
4) Roller Width 60” to 142”
5) Plaiting down and big batching arrangement.
6) D.C.Drive or A.C.Invertor Drive.
7) 10 Ton Pneumatic Pressure.
SPECIAL FEATURES:
* Adjustable Pneumatic Pressure, Variable Speed Drive.
* Allows The Use Of Highly Substantive Dyes and Minimizes the Waste of Dye Liquor.
* Pigment Padding and Continuous Dyeing with high Substantive Dyes.
* Cotton Fabrics, Mixed Fabric or Synthetic Fabric Can be Padded Effectively.
* Stainless Steel Adjustable Trough Permits Immediate and Thorough Cleaning Enabling
Change of Shade Quickly.
* Machine is designed for working from heap to heap, heap to Batch, Batch to heap or batch
To batch.
* Swivel Tension Device and Scroll Rolls Ensures Creaseless Operation of the Fabric.
* Pneumatic Pressure Adjustable Up to 10 Tons.

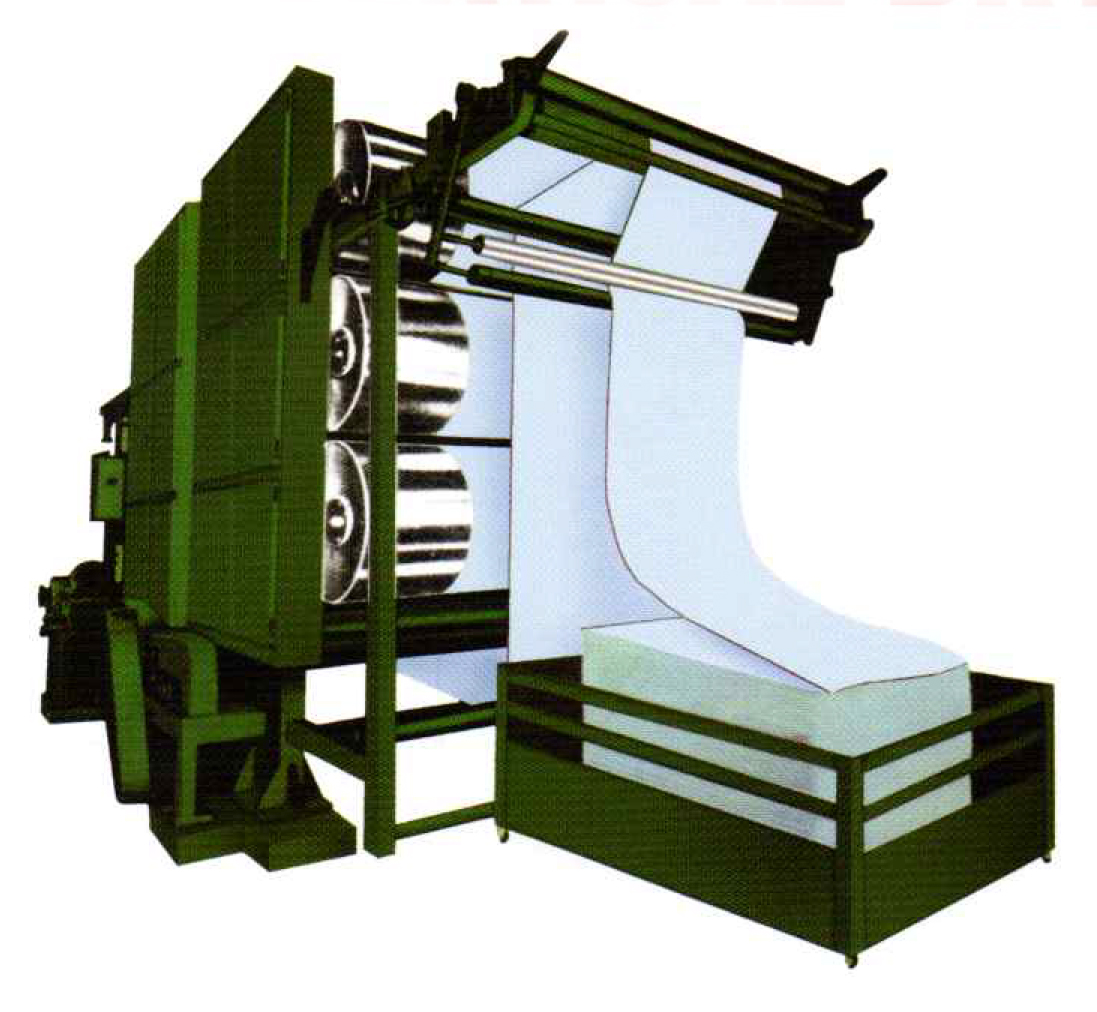

MULTI CYLINDER VERTICAL DRYING RANGE
Shakti well versed with the manufacturing of S.S.Cylinder Drying Range for the past 50 Years
Now offer to the Textile Industry Multi Cylinder Vertical Drying Range Suitable for pre, Intermediate or final drying of fabrics.
SALIENT FEATURES
* Highly Polished, non-Magnetic stainless steel cylinders to give high efficiency.
* Range is Equipped with Rotary Joints, Syphon, Flexible Pipes Vacuum Breaker,
And other Accessories.
* Cylinders mounted on Pedestals and Double Row Self Aligning ball bearings.
* A.C.or D.C.Drive and Compensator for Synchronization with Mangle or
Washing Range.
* 1” Pitch Chain and Chain Wheel for Smooth Driving of Cylinders.
* High Efficiency, Low Radiation Losses.
* The entire machine is on one common base of the same level, thus avoiding
Necessity of erection and alignment.
* Every cylinder hydraulically tested up to 120 P.S.I.to get working pressure of 60 P.S.I
* Sturdy Structure.
TECHNICAL DATA
1) Cylinders: 1-8 9-16 2) Stacks : 1 / 2 3) Connected load: 5HP/7.5HP
AUXILIARY EQUIPMENTS
* Open Width Vacuum Hydro Extractor * Special arrangements to make the machine
For minimum residual moisture. Suitable for running double width of fabric Simultaneously.
* Two bowl/Three bowl pressure padding * Teflon coated cylinder for special purpose
Mangle for squeezing the fabric. Drying.
* Plaiter, Big batching or a Combination of Both.
