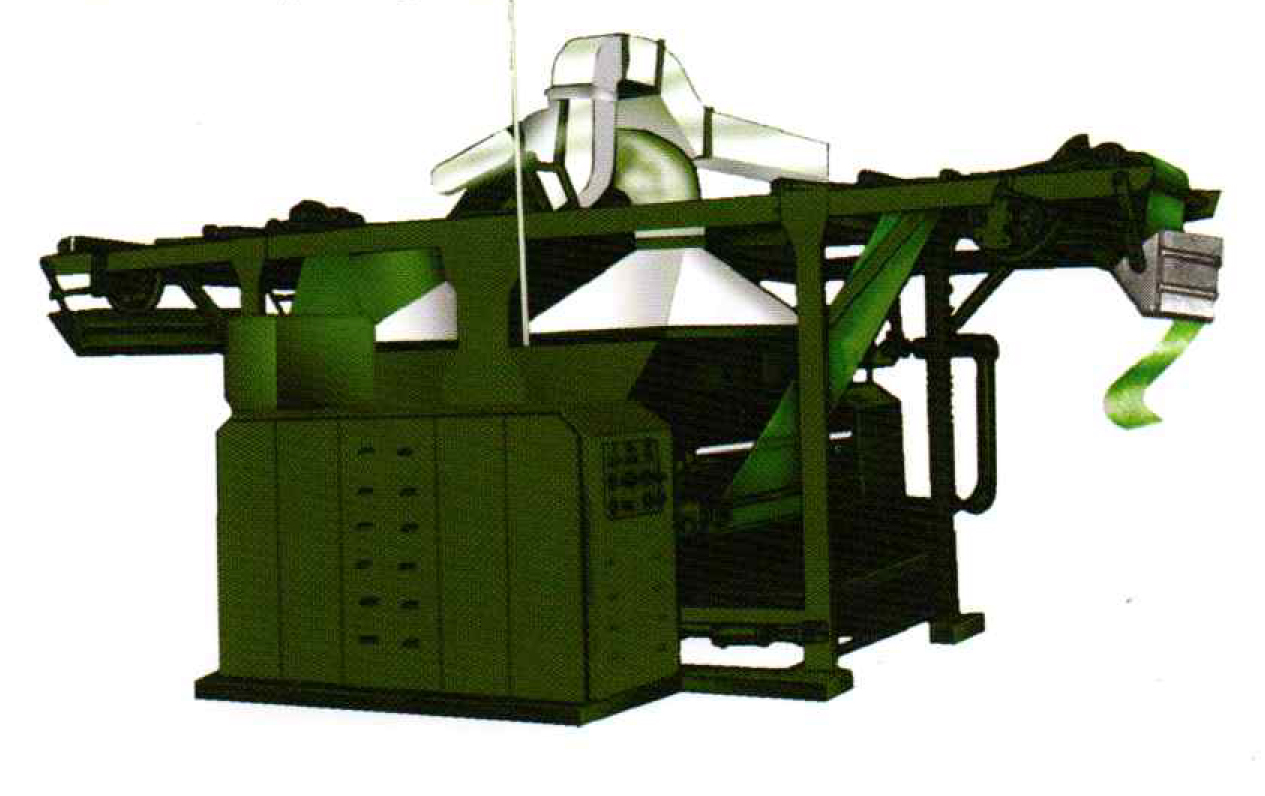

DECATIZING MACHINE.
- * Cooling is made possible while drawing off.* Pre-determined adjustable cycles.* Shortest decatizing time.* Increased stability and high Smoothness.
- SALIENT FEATURES:
The Machine is provided with:
* Two main stainless steel perforated cylinders of 600mm/800 dia. fitted with nozzles to
Avoid condensation and an extra stainless steel cylinder of 300mm.dia.for drying the
wrapper. This cylinder has a temperature controller to control steam and to avoid damage
to the warper.
* Two M.S.Hard-chrome plated roll of 190mm, dia.with both the cylinder, to keep the
Wrapper fully pressed without creasing.
* One suitable roll with feeler switch to maintain properly the center of the warper.
* Plating down arrangement, with gear motor and for picking the fabric without tension.
* A 5hp D.C/A.C Electric motor (for main cylinders) with pneumatic torque clutch and
Brake, for easy control of warper tension and uniform surface speed.
TECHINCAL DATA
Nominal working width 1500mm.1600mm, 1800mm, Fabric Speed: Rolling-up and
Rolling-off speed up to 45 meters/minute.
OUTSTANDING ADVANTAGES:
* Infinite warper tension control permits any desired even tension.
* The Pole-Changer drives both cylinders simultaneously at all times.
* Smooth and steady warper take-up obviates unequal strain and distortion.
* An automatic timer eliminates the possibility of human error and guarantees
Similar operational cycles.
* A 15hp Vacuum pump ensures increasing output and improves the finish as it cools
The fabric after steaming.(Optional 5hp pump with cone & jet arrangement for vacuuming)
* Pneumatic Pressing devices avoids crease on the fabric.
